CD100KG Cabinet Heat Pump Dryer — Industrial, Mobile, Heat-Pump Drying
Looking for an industrial cabinet heat pump dryer that rolls into place without a separate drying-room build-out? The Airtek CD100KG is an integrated cabinet heat pump dehydrator: the heat-pump section sits with the drying chamber, the unit rides on heavy-duty casters, and operation starts after a proper power connection—a practical plug-and-run layout for commercial and light-industrial floors.
The CD100KG combines white insulated outer panels with a stainless mechanical section, a stainless steel interior chamber, dual-column tray tracks, and rear multi-fan airflow. It is sized for fruit, vegetable, and spice drying lines that need 30 trays at 800 × 600 × 50 mm, with a digital / touch PLC panel for programmed runs and a documented hot air temperature range of 45°C ~ 70°C.
Soft note: Specifications below follow the factory nameplate and confirmed photo-based construction notes. Throughput in kg of finished product per batch depends on material, slice thickness, loading, and target moisture—ask for a project discussion rather than treating any single “kg capacity” claim as a guarantee. Price, Incoterms, warranty, and certificates are confirmed on formal quotation only.
What is the Airtek CD100KG? (buyer definition)
The Airtek CD100KG is an industrial cabinet heat pump dryer with an integrated heat pump, 30 trays (800 × 600 × 50 mm), and a mobile caster-mounted cabinet—designed as a plug-and-run unit that needs a suitable power connection, with a digital / touch PLC panel and hot air temperature control in the 45°C ~ 70°C range for commercial fruit, vegetable, spice, and mixed-material drying.
At a glance
- Model: CD100KG (Airtek / ATK)
- Type: Cabinet heat pump dryer (integrated unit on casters)
- Trays: 30 trays · 800 × 600 × 50 mm each
- Construction: White insulated panels + stainless mechanical section; stainless steel interior chamber; dual-column tray tracks; rear multi-fan airflow
- Mobility: Heavy-duty casters · plug-and-run style (power connection; no complex civil-install package for the standard layout)
- Control: Digital / touch PLC panel (panel brand: options on request / inquire)
- Hot air temperature: 45°C ~ 70°C
- Power (nameplate): 220 V / 1N / 50 Hz · rated 4.75 kW / 21.6 A
- Heating / refrigeration capacity: 10.5 kW heating · 7.5 kW refrigeration
- Refrigerant charge: 2500 g (refrigerant type: inquire / options on request)
- Noise / protection: ≤ 65 dB(A) · Class I · IPX4
- Weight / size: 490 kg · 2100 × 1520 × 1930 mm (external)
- Suggested power cable: 10 mm²
- Price: Inquire (Incoterms and validity confirmed on quote)
Related: Heat pump food dryer machine · CDS100KG related product · Capacity sizing · Product inquiry / RFQ
Why Choose the CD100KG
| Benefit | What it means on the floor |
|---|---|
| Integrated heat pump cabinet | Chamber and heat-pump section in one mobile unit—no separate outdoor-unit install for the standard layout |
| Heavy-duty casters | Roll the dryer between wash, packing, or staging bays as your flow changes |
| Plug-and-run power | Designed for a proper power connection and run—without a complex civil-install package |
| SS interior + dual-column tracks | Stainless drying chamber with dual tray columns for orderly loading and hygiene-minded cleaning |
| Rear multi-fan airflow | Distributed airflow across the tray stack for more even batch drying |
| Digital / touch PLC panel | Programmed control on the mechanical side for repeatable commercial runs |
| 30 × 800×600×50 mm trays | Substantial tray area in a cabinet footprint for sliced fruit, herbs, spices, and mixed SKUs |
| Hot air 45°C ~ 70°C | Documented temperature band suited to many fruit, vegetable, and spice drying recipes |
Typical Applications
The CD100KG is used as a commercial / industrial cabinet heat pump food dehydrator for mixed small-to-medium batches such as:
- Fruits & vegetables — chips, slices, and ingredient drying (mango, banana, chili, and similar materials)
- Spices & aromatics — where controllable hot-air temperature helps protect color and aroma narratives
- Flower tea / herbs — programmed drying for leaf and flower materials
- Mixed materials — multi-SKU workshops that change products between batches
Do not treat this list as a medical, nutritional, or “cure-all” claim. Final moisture, color, and food-safety outcomes depend on your process design, sanitation, and destination-market specs. Airtek does not publish invented finished-goods kg/batch figures on this page—share your crop and target moisture when requesting a capacity discussion.
For crop-level process thinking, see banana heat pump drying and the fruit drying machine category. For tray-count and daily-output framing, see industrial heat pump dryer capacity sizing.
Technical Specifications
| Item | Specification |
|---|---|
| Model | CD100KG |
| Type | Cabinet heat pump dryer (integrated unit on casters) |
| Tray count | 30 trays |
| Tray size | 800 × 600 × 50 mm |
| Construction | White insulated panels + stainless mechanical section; stainless steel interior chamber; dual-column tray tracks; rear multi-fan airflow |
| Mobility | Heavy-duty casters; plug-and-run (power connection; no complex site install for standard layout) |
| Control | Digital / touch PLC panel (exact panel brand: inquire / options on request) |
| Hot air temperature | 45°C ~ 70°C |
| Rated voltage / frequency | 220 V / 1N / 50 Hz |
| Rated power | 4.75 kW |
| Rated current | 21.6 A |
| Heating capacity | 10.5 kW |
| Refrigeration capacity | 7.5 kW |
| Refrigerant charge | 2500 g (refrigerant type: inquire / options on request) |
| Electric shock protection | Class I |
| Protection level | IPX4 |
| Max discharge (exhaust) pressure | ≤ 3.0 MPa |
| Max suction (breathe) pressure | ≤ 0.75 MPa |
| Noise | ≤ 65 dB(A) |
| Suggested power cable | 10 mm² |
| Unit weight | 490 kg |
| External dimensions | 2100 × 1520 × 1930 mm |
Alternate voltages for non-220 V / 1N / 50 Hz markets, refrigerant type, finished-goods batch capacity (kg) for specific crops, warranty wording, certificate documentation, and control-panel brand are confirmed on quotation—not invented on this page.
Trays & Loading Notes
- 30 trays, each 800 × 600 × 50 mm
- Leave gaps between pieces; avoid stacking that creates wet cores
- Tray loading density is product- and trial-dependent—do not copy a brochure band into a purchase contract as an Airtek guarantee
- For capacity and tray-count framing, see industrial heat pump dryer capacity sizing
- For energy framing (kWh per kg water, SMER questions), see heat pump dryer energy saving vs hot air
Price & Commercial Terms
| Price | Inquire |
|---|---|
| Status | Confirmed on formal quotation only. Incoterms, tax inclusion, currency, and quote validity are set on the PI / contract—not invented here. Payment terms, warranty length, and certificate numbers belong on the written quote. |
Who This Model Fits
- Processors who want a mobile industrial cabinet heat pump dryer without building a full drying room first
- Plants running fruit, vegetable, spice, or mixed SKUs on a batch tray system
- Buyers who need a documented hot-air band (45°C ~ 70°C) and a digital / touch PLC panel
- Workshops validating recipes before scaling to larger chambers or continuous lines

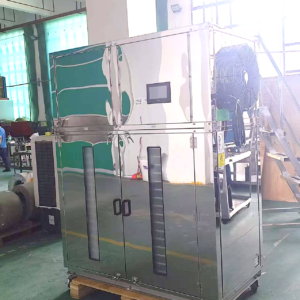

If you later need higher daily water removal or continuous throughput, Airtek can discuss larger heat pump food dryer chambers or conveyor options against your wet infeed and target moisture. You may also review the related Airtek cabinet model CDS100KG as another Airtek product page resource.
FAQ — Airtek CD100KG cabinet heat pump dryer
Is the CD100KG plug-and-play / plug-and-run?
Yes, as specified for this model: it is a cabinet heat pump dryer on heavy-duty casters with an integrated heat pump. Site wording for this SKU is power connection and run—no complex civil-install package for the standard layout. Confirm local 220 V / 1N / 50 Hz supply and that the circuit can support the nameplate rated load (4.75 kW / 21.6 A). Suggested power cable size on the nameplate is 10 mm². Other grid options (if any) are inquire / options on request.
How many trays does it have, and what size?
The CD100KG has 30 trays, each 800 × 600 × 50 mm. Useful drying area and batch wet weight still depend on product thickness, loading density, and target moisture—share your crop and kg/batch when requesting a capacity discussion. Finished-goods kg per batch is not published as a fixed guarantee on this page.
How is the cabinet constructed?
From confirmed product photos: white insulated outer panels with a stainless mechanical section, a stainless steel interior chamber, dual-column tray tracks, and rear multi-fan airflow. Confirm gasket, tray, and BOM details on the quotation drawing if your buyers require a full food-grade parts list.
What temperature range does the CD100KG provide?
The nameplate hot air temperature range is 45°C ~ 70°C. Operators use the digital / touch PLC panel for programmed runs. Exact recipes remain product-specific—validate setpoints against your material and target moisture.
Who is the CD100KG for?
It fits commercial and light-industrial buyers who need a movable, all-in-one cabinet for fruits & vegetables, spices, herbs, or mixed materials—especially plants that want heat-pump drying without a large chamber build-out. For multi-ton continuous or shared large-chamber projects, discuss other Airtek options via product inquiry.
What is the difference between rated power and heating capacity?
The nameplate lists rated power 4.75 kW (electrical input under rated conditions) and heating capacity 10.5 kW / refrigeration capacity 7.5 kW (heat-pump performance figures). These are different quantities—do not treat heating capacity as the same as electrical draw when sizing breakers or cables. Use the rated current 21.6 A and suggested 10 mm² cable as the electrical planning baseline, then confirm on site with a qualified electrician.
Inquire / Request a Quote
WhatsApp
Request a Quote for the CD100KG
Ready to size the CD100KG cabinet heat pump dryer for your plant? Tell us:
- Product type and form (slices, whole pieces, herbs, spices, etc.)
- Approximate wet load per batch and target moisture
- Site power (voltage / frequency / available amperage)
- Destination market or packaging moisture expectations
Next step: open the product inquiry form or email info@airtekdehydrator.com with subject line CD100KG inquiry.
