Description
CDS100KG Cabinet Heat Pump Dryer — Compact, Mobile, Plug-and-Play

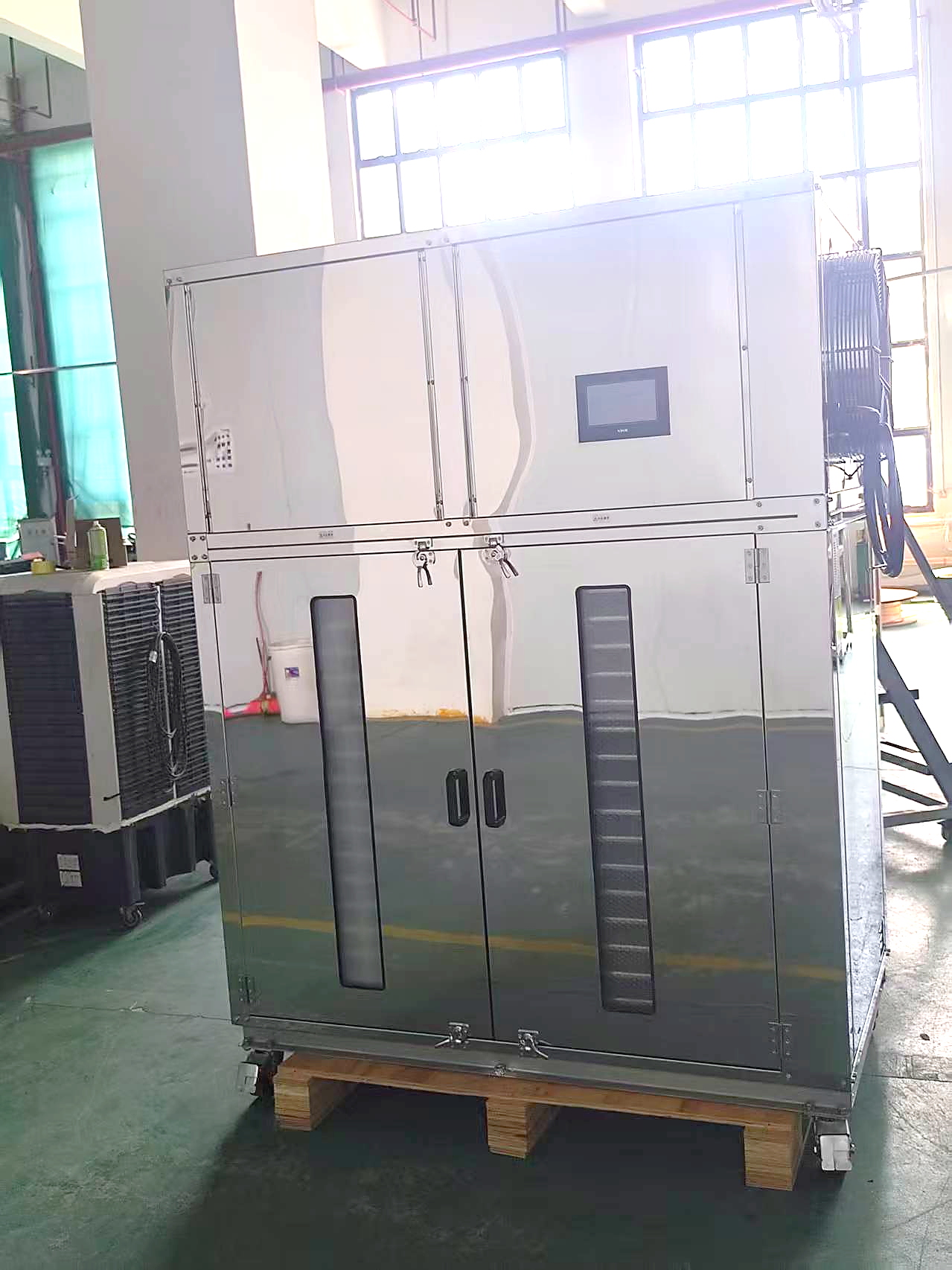

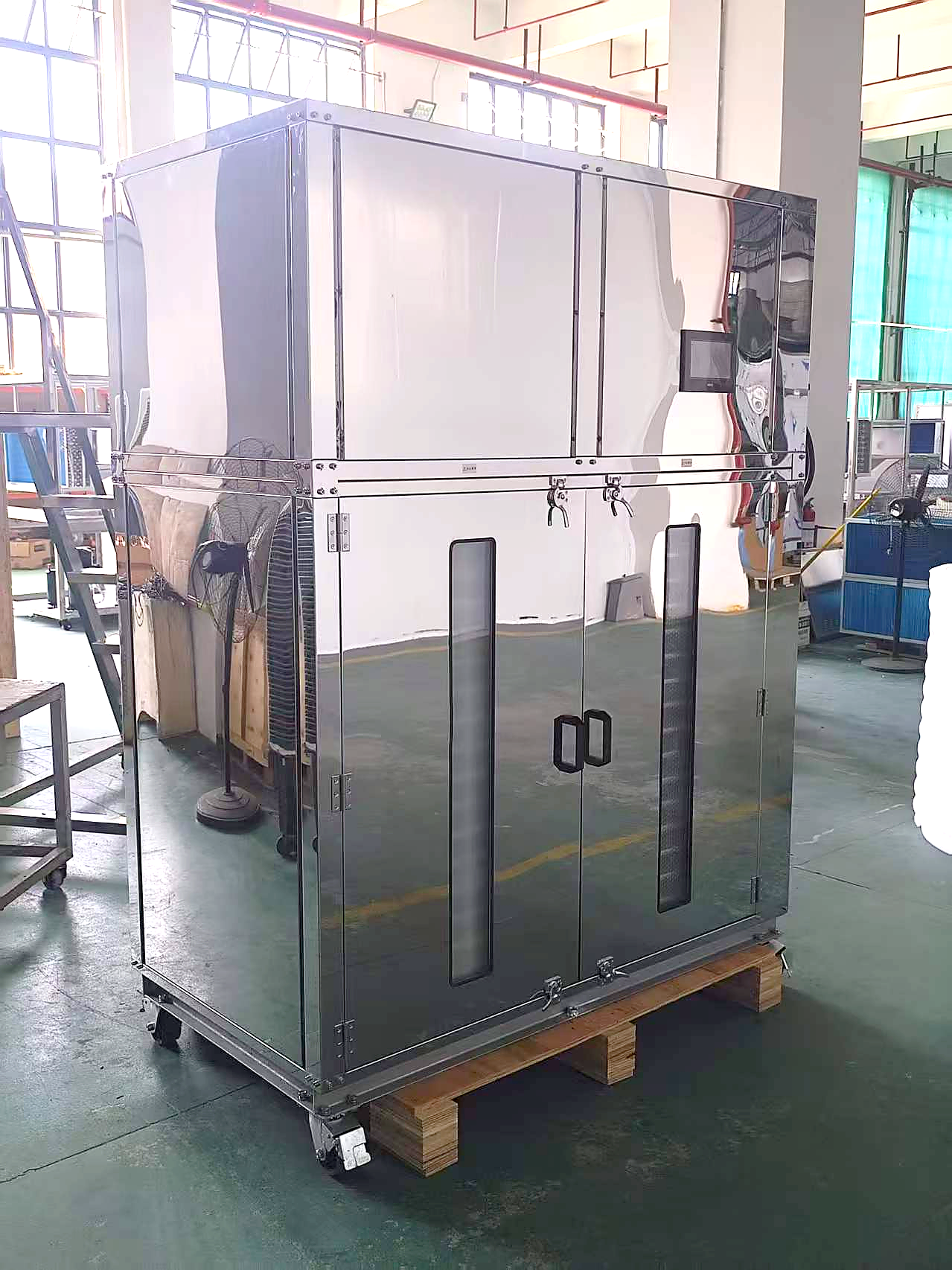

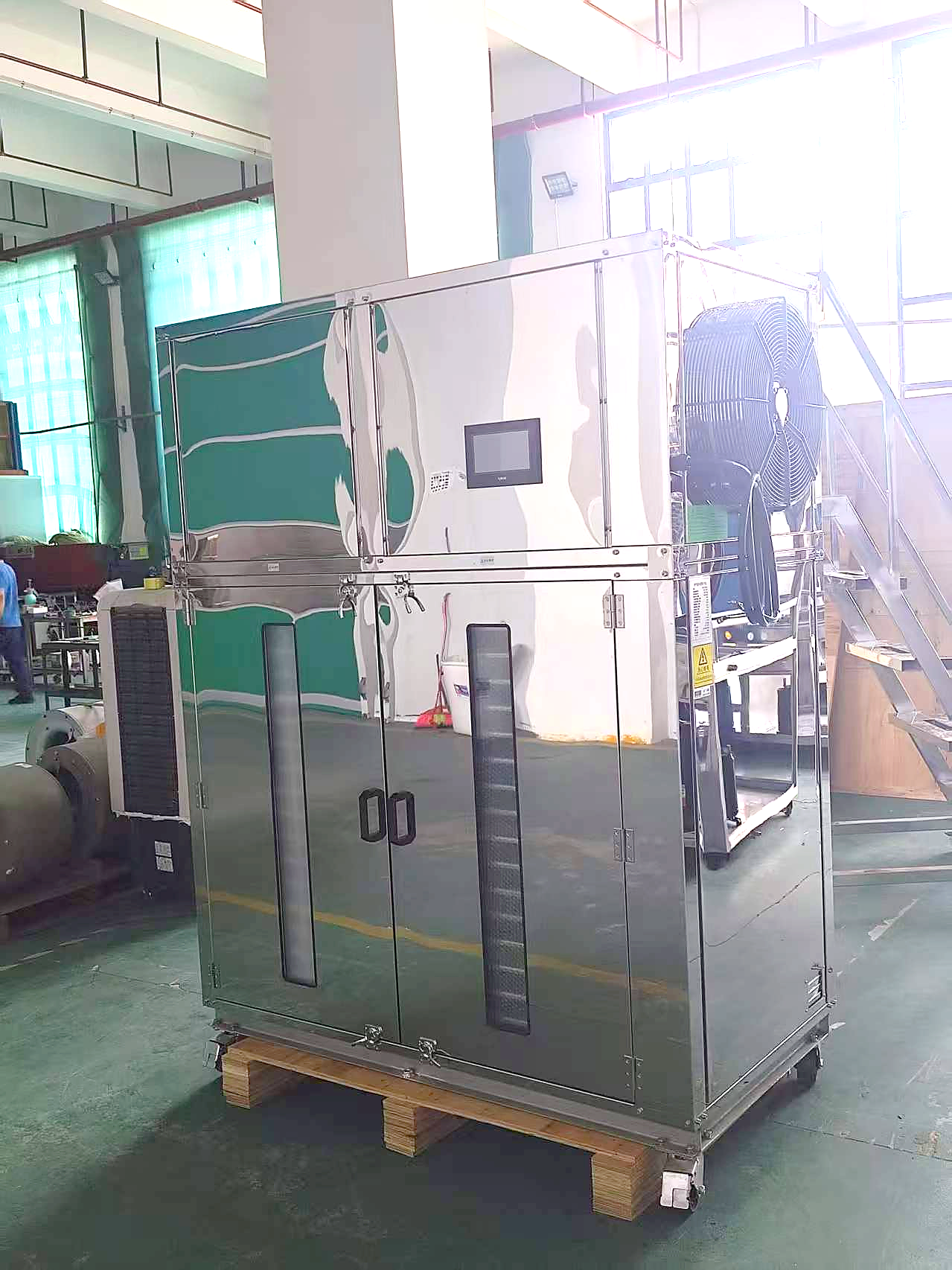

Looking for a compact cabinet heat pump dryer that does not need a separate drying-room build-out? The Airtek CDS100KG is an all-in-one heat pump dehydrator: the heat-pump unit is built into the cabinet, the frame rolls on four casters, and operation starts after a proper power connection—no complex site installation package for a typical plug-and-play layout.
Built in bright-finish SUS304 stainless steel, the CDS100KG is sized for commercial trial lines, small plants, and multi-product workshops that need PLC control of temperature, humidity, and drying time—with 36 trays at 800 × 600 mm. Typical dry output is about 15–25 kg per batch depending on the material; power can be configured for 220 V single-phase or 380 V three-phase.
Specifications below follow the nameplate and factory parameter sheet. Dried yield per batch varies by material, slice thickness, loading density, and target moisture—ask for a project discussion rather than treating any single kg figure as a contractual guarantee. List price is USD 6,930 FOB Guangzhou; quote validity on request.
What is the Airtek CDS100KG? (buyer definition)
The Airtek CDS100KG is a compact cabinet heat pump dryer with an integrated heat pump, 36 trays (800 × 600 mm), and SUS304 stainless steel construction—a plug-and-play caster unit that needs only a power connection, with PLC control of temperature, humidity, and drying time. Typical dry output is about 15–25 kg per batch depending on the material; power can be configured for 220 V single-phase or 380 V three-phase.
At a glance
- Model: CDS100KG (Airtek / ATK)
- Type: Compact cabinet heat pump dryer (integrated / all-in-one heat pump)
- Trays: 36 trays · 800 × 600 mm each
- Indicative dry yield: about 15–25 kg dry product / batch (varies by material, slice thickness, loading, and target moisture)
- Material: SUS304 stainless steel, bright finish (whole frame)
- Mobility: 4 casters · plug-and-play (power connection only; no complex site install for the standard layout)
- Control: PLC — target temperature, humidity, and drying time
- Drying temperature / humidity: 18°C ~ 80°C · 10% ~ 95%
- Power: Nameplate 220 V / 50 Hz; 220 V single-phase or 380 V three-phase customizable
- Main unit rated input: 4 kW / 26 A (nameplate basis)
- Electric auxiliary heat: 3 kW / 13.5 A
- Maximum input: 7 kW / 39.5 A
- Average dehydration capacity: 9 L/h
- Noise / ambient: ≤ 72 dB(A) · working environment 10°C ~ 40°C
- Refrigerant: R134a / 3500 g
- Weight / size: 388 kg · 1700 × 920 × 2170 mm (W×D×H)
- Price: USD 6,930 FOB Guangzhou (confirm validity / inclusions on quotation)
- Warranty: 1 year
Why Choose the CDS100KG
| Benefit | What it means on the floor |
|---|---|
| Integrated heat pump cabinet | One machine: chamber + heat pump—no separate outdoor unit install for the standard layout |
| Four casters / mobile | Roll the unit to the wash area, packing line, or another bay as your flow changes |
| Plug-and-play power | Designed for power connection and run—without a complex civil-install package |
| Bright SUS304 | Food-contact oriented stainless look for hygiene-minded buyers |
| PLC: temp / humidity / time | Set target temperature, humidity, and drying time, then run automatically |
| 36 × 800×600 mm trays | Large tray area in a compact footprint for sliced fruit, herbs, and mixed SKUs |
| Flexible power options | 220 V single-phase or 380 V three-phase; customization available |
Typical Applications
The CDS100KG is used as a commercial heat pump food dehydrator for mixed small-to-medium batches such as:
- Fruits & vegetables — chips, slices, and ingredient drying (mango, banana, chili, and similar materials)
- Spices & aromatics — where controllable temperature and humidity help protect color and aroma narratives
- Flower tea / herbs — gentle programmed drying for leaf and flower materials
- Fish & meat snacks — protein drying under plant hygiene rules (validate recipes and food-safety SOPs on site)
- Pasta / noodles — moisture reduction for shelf-stable or intermediate products
- Mixed materials — multi-SKU workshops that change products between batches
Do not treat this list as a medical, nutritional, or “cure-all” claim. Final moisture, color, and food-safety outcomes depend on your process design, sanitation, and destination-market specs.
For crop-level process thinking, see Airtek’s guides such as banana heat pump drying and the broader fruit drying machine category.

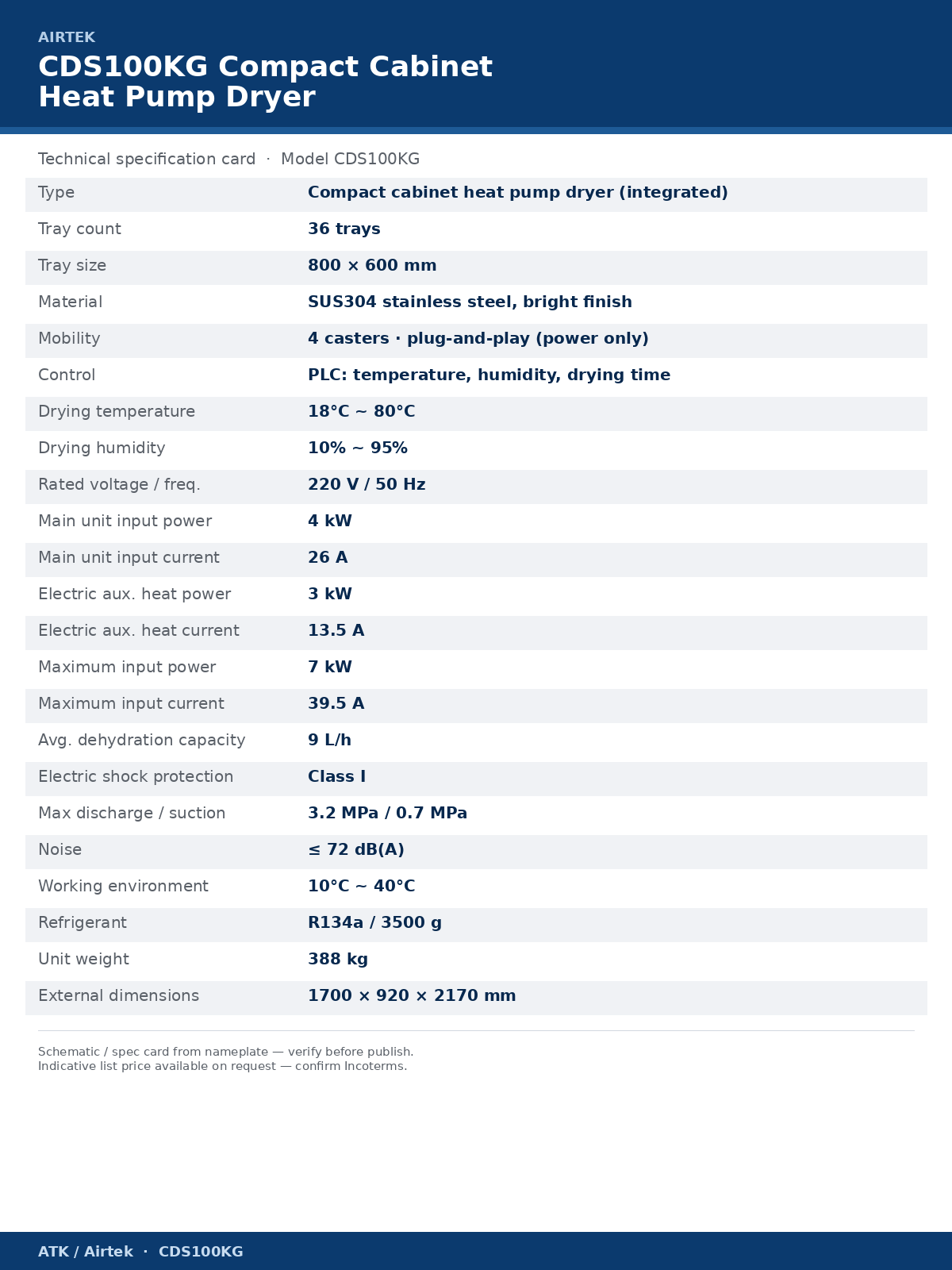

Technical Specifications
| Item | Specification |
|---|---|
| Model | CDS100KG |
| Type | Compact cabinet heat pump dryer (integrated heat pump) |
| Tray count | 36 trays |
| Tray size | 800 × 600 mm |
| Indicative dry yield | About 15–25 kg dried product per batch (varies by material, slice thickness, loading, target moisture) |
| Material | SUS304 stainless steel, bright finish (whole frame) |
| Mobility | 4 casters; plug-and-play (power connection; no complex site install for standard layout) |
| Control | PLC — target temperature, humidity, drying time |
| Drying temperature | 18°C ~ 80°C |
| Drying humidity | 10% ~ 95% |
| Rated voltage / frequency (nameplate) | 220 V / 50 Hz (standard configuration) |
| Power options | 220 V single-phase or 380 V three-phase; customization available |
| Main unit rated input power | 4 kW |
| Main unit rated input current | 26 A |
| Electric auxiliary heat power | 3 kW |
| Electric auxiliary heat current | 13.5 A |
| Maximum input power | 7 kW |
| Maximum input current | 39.5 A |
| Average dehydration capacity | 9 L/h |
| Electric shock protection | Class I |
| Max discharge pressure | 3.2 MPa |
| Max suction pressure | 0.7 MPa |
| Noise | ≤ 72 dB(A) |
| Working environment | 10°C ~ 40°C |
| Refrigerant | R134a / 3500 g |
| Unit weight | 388 kg |
| External dimensions (W × D × H) | 1700 × 920 × 2170 mm |
| Warranty | 1 year |
Finished-goods batch capacity (kg) for specific crops and any certificate numbers are confirmed on quotation. Do not invent CE certificate IDs.
Trays & Loading Notes
- 36 trays, each 800 × 600 mm
- As a practical guide, dry output is about 15–25 kg per batch, and varies by material, slice thickness, loading density, and target moisture
- Leave gaps between pieces; avoid stacking that creates wet cores
- Tray loading density is product- and trial-dependent—do not copy a brochure band into a purchase contract as an Airtek guarantee
- For energy and moisture framing (kWh per kg water, SMER questions), see Airtek’s heat pump dryer energy saving guide
Price & Commercial Terms
| List price | USD 6,930 FOB Guangzhou |
| Quote validity | On request (confirm on quotation) |
| Warranty | 1 year |
| Notes | Confirm inclusions, currency, and payment terms on the PI / contract. |
Who This Model Fits
- Processors who want a mobile cabinet heat pump dryer without building a full drying room first
- Plants running multiple SKUs (fruit today, herbs tomorrow) on a batch tray system
- Buyers who need PLC setpoints for temperature, humidity, and time—not only a simple thermostat
- Export or domestic workshops validating recipes before scaling to larger chambers or continuous lines
If you later need higher daily water removal or continuous throughput, Airtek can discuss larger heat pump food dryer chambers or conveyor options against your wet infeed and target moisture.
FAQ — Airtek CDS100KG cabinet heat pump dryer
Q1. Is the CDS100KG truly plug-and-play, and what power do I need?
A. Yes for this model: a compact cabinet heat pump dryer on 4 casters with an integrated heat pump, specified as power connection only—no complex site installation package. Power is customizable for 220 V single-phase or 380 V three-phase. Confirm your site supply and that the circuit can support the nameplate maximum input (7 kW / 39.5 A on the 220 V / 50 Hz nameplate basis) when auxiliary heat is used.
Q2. How many trays, and how much dry product per batch?
A. The CDS100KG has 36 trays, each 800 × 600 mm. As a practical guide, dry output is about 15–25 kg per batch, and varies by material, slice thickness, loading density, and target moisture. Share your crop and wet kg/batch when discussing capacity.
Q3. What material is the cabinet made of?
A. The whole frame is SUS304 stainless steel with a bright finish, suited to commercial food-contact drying environments. Confirm gasket, tray, and trolley details on the quotation drawing if buyers need a full food-grade BOM.
Q4. What temperature and humidity control does the PLC provide?
A. The PLC lets operators set target temperature, humidity, and drying time, then run automatically. Documented ranges: drying temperature 18°C ~ 80°C; drying humidity 10% ~ 95%. Ambient working environment for the unit is 10°C ~ 40°C. Recipes remain product-specific.
Q5. Who is the CDS100KG for, and what about warranty / price?
A. It fits commercial and light-industrial buyers who need a movable, all-in-one cabinet for fruits & vegetables, spices, flower tea, fish/meat, pasta, or mixed materials. Indicative list price is USD 6,930 FOB Guangzhou; warranty is 1 year. For larger chamber or continuous belt projects, use product inquiry.
Q6. What does “average dehydration capacity 9 L/h” mean?
A. It is a nameplate-style water-removal rate (liters of moisture per hour under stated conditions)—not the same as “kg of finished chips per batch.” Finished yield still depends on initial/final moisture and how much wet product you load.
Request a Quote for the CDS100KG
Ready to size the CDS100KG cabinet heat pump dryer for your plant? Tell us:
- Product type and form (slices, whole pieces, herbs, etc.)
- Approximate wet load per batch and target moisture
- Site power (voltage / frequency / available amperage — 220 V single-phase or 380 V three-phase)
- Destination market or packaging moisture expectations
Next step: open the product inquiry form or email info@airtekdehydrator.com with subject line CDS100KG inquiry.
