Description
Looking for a commercial open-loop heat pump drying solution with a full room and trolley workflow—not only a sealed cabinet? The Airtek KH1200 is a complete package: heat pump, fan wall, insulated drying chamber, and stainless steel trolleys with trays. After simple installation and a proper 380V / 50Hz single-phase power connection, the line is ready for production use. Custom electrical options are available on request.
This package is sized for roughly 800–1,200 kg wet feed per batch. Finished dry weight still depends on product moisture, slice thickness, and loading—ask for a project discussion rather than treating any single “kg capacity” claim as a guarantee.
Soft note: Specs below follow the locked package brief. Open-loop systems usually work best in tropical / subtropical climates or indoor halls where ambient air stays above about 5 °C. Higher ambient temperature typically helps the heat pump harvest more heat and run more efficiently. Price shown is the package total only—no public BOM line rates.
What is the Airtek KH1200?
The Airtek KH1200 is a 20-trolley open-loop heat pump drying solution for commercial fruit, vegetable, herb, spice, fish, and meat drying lines. Moisture is exhausted outdoors through a dehumidifying exhaust path while the fan wall drives hot air across loaded trays inside a PUF insulated room.
- Model: KH1200 (Airtek / ATK)
- Type: Open-loop heat pump drying package (room + trolleys)
- Indicative batch size: ~800–1,200 kg wet feed per batch (product-dependent)
- Heat-pump class: 12PH module class (module count — not a default “three-phase” label)
- Power: 380V / 50Hz single-phase (custom options on request)
- Package price: USD 21,699 FOB Guangzhou
Why choose this 20-trolley package
| Benefit | What it means on the floor |
|---|---|
| Complete four-part package | Heat pump + fan wall + PUF chamber + 20 trolleys / 320 trays—ordered as one solution |
| Open-loop energy logic | Warm ambient air helps the heat pump; suited to tropical / subtropical sites or warm factory halls |
| Room + trolley workflow | Load and unload batches on SS304 trolleys without rebuilding the chamber each run |
| 380V / 50Hz single-phase | Standard package supply after simple install and power connection; custom voltages available on request |
| One package price | Front shows USD 21,699 FOB Guangzhou only—no public line-item rates |
Four core parts
1. Heat pump dryer (heat source)
- Dehumidification capacity: 50 L/h
- Power: 12.4 kW / 24.8 A
- Role: generates useful heat for the drying air loop
2. Fan wall (air circulation)
- 2 × fan walls (12 fans each · 3 kW · 21,600–38,400 m³/h)
- Role: drives hot-air circulation across trays

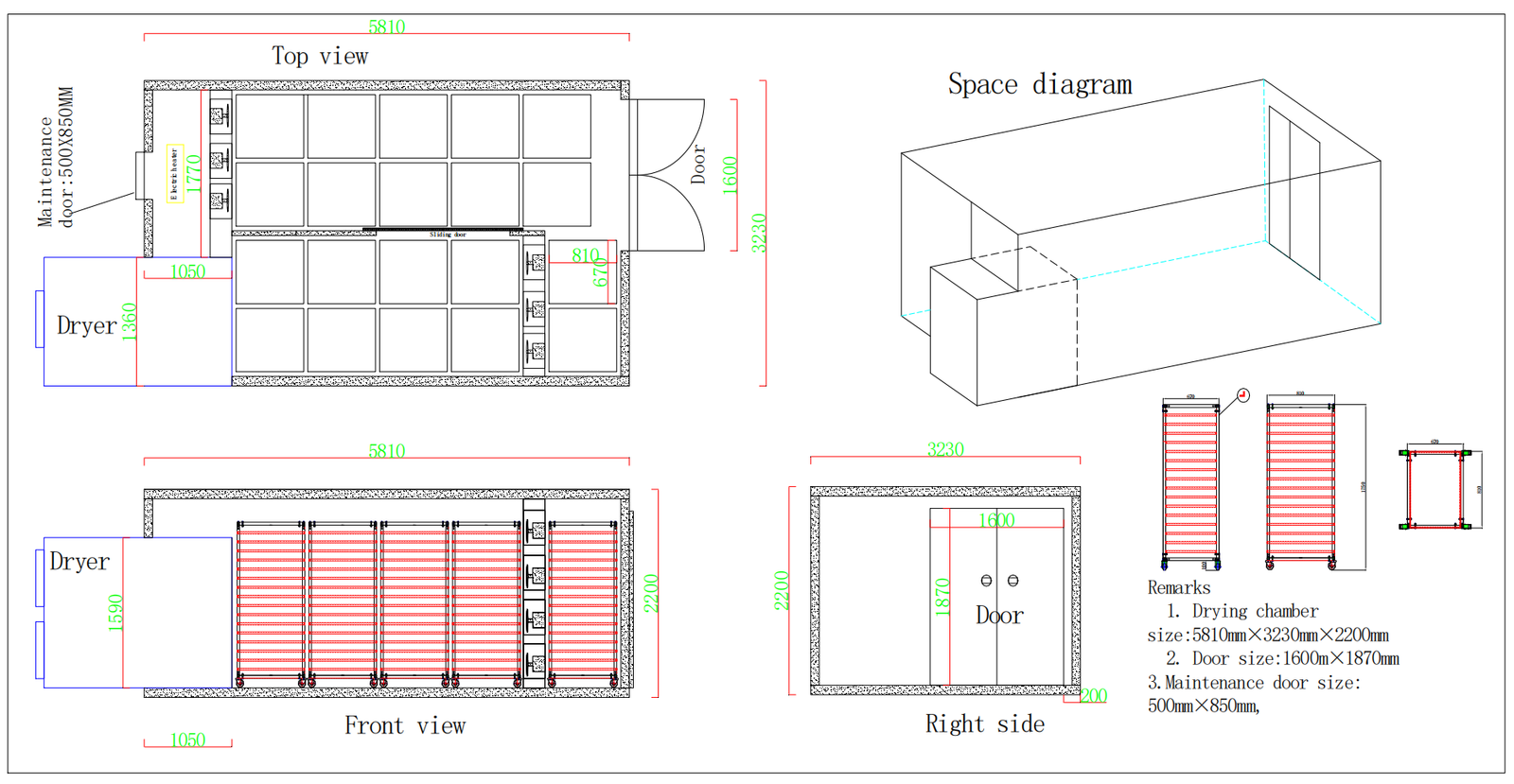

3. Drying chamber (insulated room)
- Panels: PUF sandwich
- Outer size: 5,810 × 3,230 × 2,200 mm
- Door: 1,600 × 1,870 mm
- Role: holds loaded trolleys and keeps the drying environment stable
4. Stainless steel trolleys & trays
- Trolleys: 20 × SS304, 870 × 610 × 1,800 mm
- Trays: 320 × SS304 flat, 800 × 600 mm
- Role: load / unload product without rebuilding the room each batch
Package checklist
| Item | Spec highlight | Qty |
|---|---|---|
| Heat pump dryer | 50 L/h · 12.4 kW / 24.8 A | 1 |
| Fan wall | 12 fans each · 3 kW · 21,600–38,400 m³/h | 2 |
| Drying chamber | PUF · 5,810 × 3,230 × 2,200 mm · door 1,600 × 1,870 mm | 1 |
| Trolleys | SS304 · 870 × 610 × 1,800 mm | 20 |
| Trays | SS304 flat · 800 × 600 mm | 320 |
Public page shows package quantities and highlights only—not BOM unit rates.
Best-fit applications
- Tropical and subtropical sites (higher ambient usually supports better open-loop efficiency)
- Factory halls with ambient air above about 5 °C
- Commercial fruit / vegetable / herb / spice / fish / meat lines that need a room + trolley workflow
Cold outdoor winter installs without intake-air heating are usually a weaker primary fit for open-loop—confirm ambient conditions when you inquire.
For crop-level process thinking, see Airtek’s fruit drying machine category and the heat pump food dryer hub. For batch sizing questions, use the capacity sizing guide when live.
Indicative package price
| Package price | USD 21,699 |
|---|---|
| Incoterms | FOB Guangzhou |
| Presentation | One package total on the storefront (no public BOM line rates) |
Quote validity, tax treatment, and payment terms are confirmed on the formal PI / contract—not invented on this page.
FAQ — Airtek KH1200 20-trolley open-loop package
Q1. What is included in the 20-trolley package?
A. One heat pump dryer (50 L/h · 12.4 kW / 24.8 A), fan wall setup (2 × fan walls (12 fans each · 3 kW · 21,600–38,400 m³/h)), one PUF drying chamber (5,810 × 3,230 × 2,200 mm with 1,600 × 1,870 mm door), 20 SS304 trolleys, and 320 SS304 flat trays (800 × 600 mm).
Q2. What capacity should I expect?
A. The package is framed for roughly 800–1,200 kg wet feed per batch. Finished dry weight depends on initial/final moisture, loading density, and product form—share your crop and target moisture when requesting a capacity discussion.
Q3. Where does open-loop work best?
A. Warm climates or indoor sites with ambient air above about 5 °C. Higher ambient temperature usually helps the heat pump harvest more heat and run more efficiently.
Q4. What power supply do I need?
A. This package is specified for 380V / 50Hz single-phase. Other voltages or configurations can be discussed as custom options—confirm available supply and amperage when you inquire.
Q5. Is installation complicated?
A. It is designed as a complete package. After simple installation and power connection, it is intended for production use. Exact civil and ducting scope for your building is confirmed in the project discussion.
Q6. How do I get a firm quote?
A. Use Inquire or WhatsApp below. We confirm voltage, layout, Incoterms, and any options for your site before issuing a formal quotation.
Shipping, payment, warranty & installation
Commercial terms below are Airtek storefront defaults for the KH1200 package. Binding details are confirmed on the Proforma Invoice (PI) / contract for your order.
Shipping
- Incoterms: FOB Guangzhou. The package display price USD 21,699 is FOB Guangzhou.
- After FOB handover, ocean/air freight and destination clearance are arranged by the buyer (or as agreed on the PI).
- Indicative production lead time: about 20 working days after deposit (confirm on the PI).
- Export packing follows the quotation packing list.
Payment
- 30% T/T deposit against the Proforma Invoice (PI); 70% T/T before shipment.
- Bank details and settlement currency (USD) are confirmed on the PI.
- Other payment schedules only if agreed in writing.
Warranty
- 12 months (1 year) from shipment (or from commissioning if mutually agreed in writing).
- Replacement accessories are free of charge during the warranty period under Airtek standard terms; wear parts and misuse exclusions apply as customary.
- Remote technical support with a soft response target within 24 hours during normal business follow-up.
Installation
- Sold as a complete package (heat pump + fan wall + chamber + trolleys/trays). After simple installation and correct 380V / 50Hz single-phase power connection (customization available), it is intended for production use.
- On-site engineer: USD 120 / engineer / day; the buyer bears airfare, hotel, and meals.
- Local installation teams are available in Kenya, DR Congo, Indonesia, Thailand, Vietnam, and Panama (scope elsewhere per project).
- The buyer provides suitable power, site, lifting, outdoor exhaust for open-loop operation, and local labour as agreed.
Request a quote for the KH1200
Ready to size this 20-trolley open-loop heat pump drying solution for your plant? Tell us:
- Product type and form (slices, whole pieces, herbs, etc.)
- Approximate wet load per batch and target moisture
- Site power (confirm 380V / 50Hz single-phase availability, or request custom supply) and ambient conditions
- Destination market or packaging moisture expectations
Next step: open the product inquiry form, email info@airtekdehydrator.com with subject line KH1200 inquiry, or use the buttons below.
